Out of stock

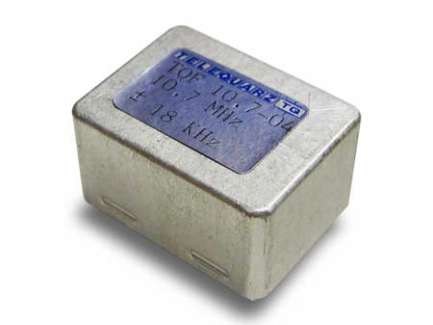

TQF10.7-04 Telequarz |
|
|---|---|
10.7 MHz crystal band-pass filter, 8 poles
TQF10.7-04
Order code: F-10M7-E4
Product conditions: N-
|
|
-
10.7 MHz
-
35 kHz
-
90 dB
-
2.7 kΩ
-
PCB mount
-
thru-hole
-
36 x 27 mm - h 19 mm
No document found
10.7 MHz crystal quartz filter, 8 poles, very good selectivity, suggested for Meteosat and data RX
SPECIFICATIONS:
- Bandwidth (-3dB): 35 KHz
- Selectivity: 90 dB
- Impedance: 2.7 KΩ
- Dimensions: 36 x 27 mm, h 19 mm
-
85416000
-
34.00 g
-
No
-
Not available
