Transistors - BJT

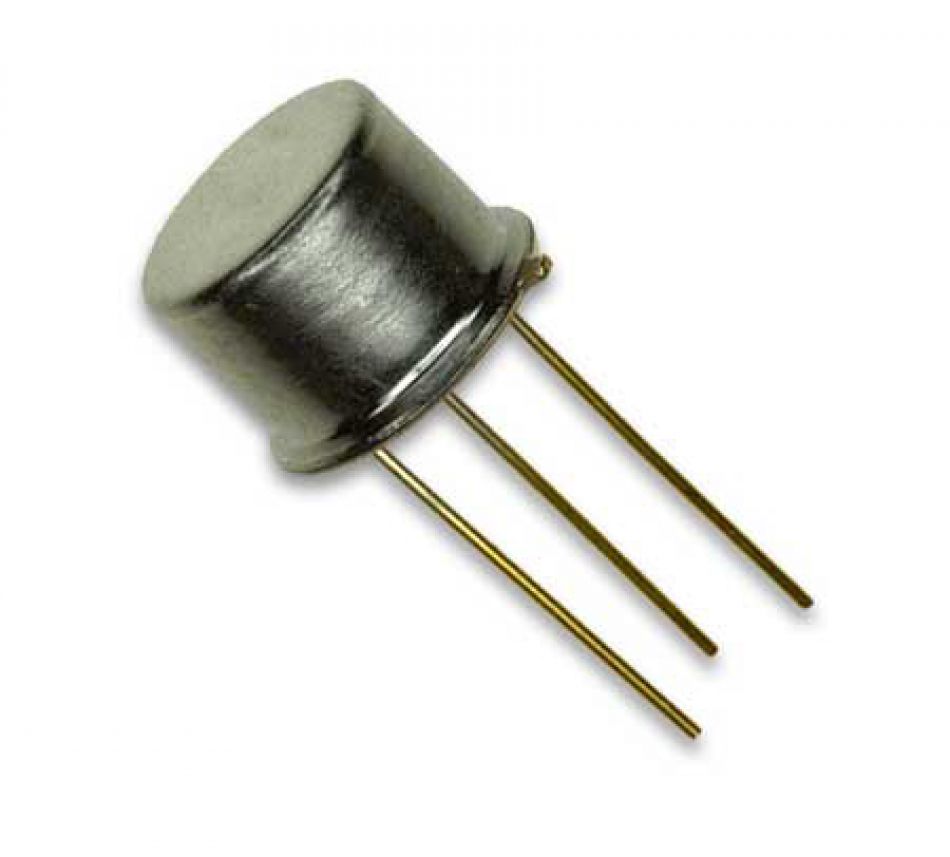

Silicon bipolar NPN RF transistor, TO-39

Order code:	2N1613
	Silicon bipolar NPN RF transistor, TO-39 STMicroelectronics 2N1613
Conditions:	N (The product is brand new)
Polarity:	NPN
Collector-emitter voltage (Vce max):	50 V
Transition frequency (fT):	80 MHz
Collector current (Ic max):	500 mA
Dissipated power (Ptot):	800 mW
Mounting:	thru-hole
Package:	TO-39
Package type :	metallic

Go to product page 2N1613

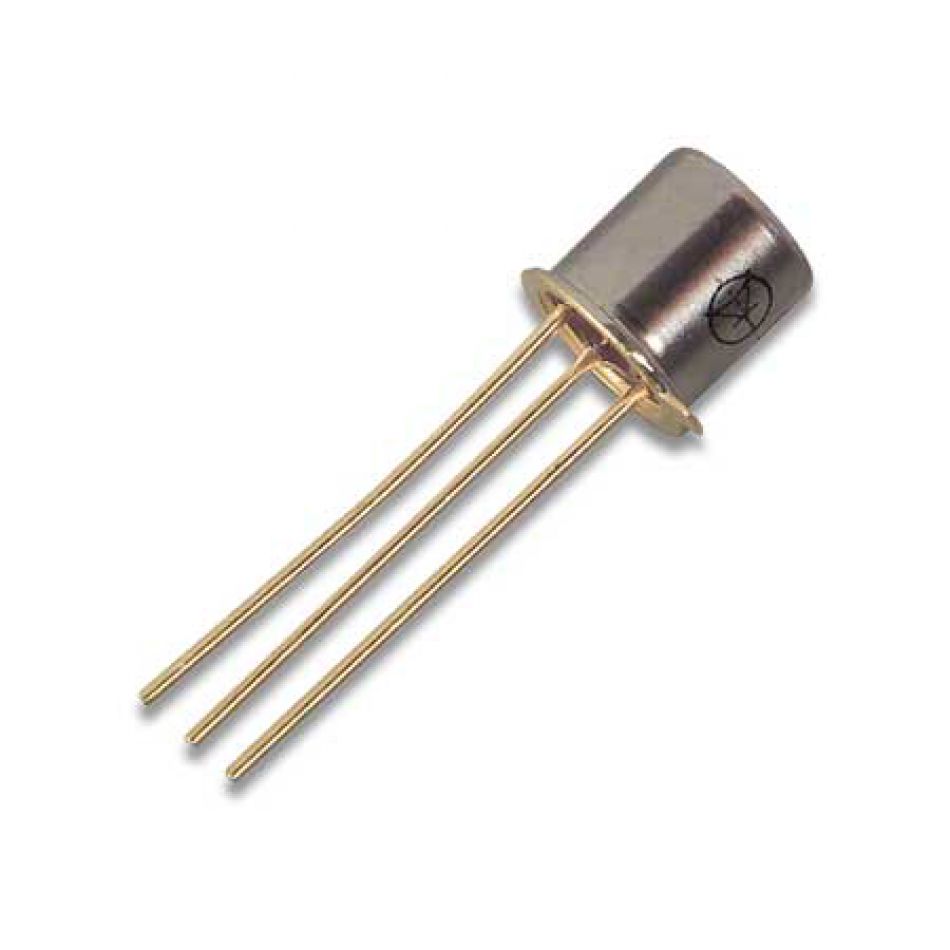

Bipolar NPN RF transistor, TO-18

Order code:	2N2484
	Bipolar NPN RF transistor, TO-18 National Semiconductor 2N2484
Conditions:	N (The product is brand new)
Polarity:	NPN
Collector-emitter voltage (Vce max):	60 V
Transition frequency (fT):	60 MHz
Collector current (Ic max):	50 mA
Dissipated power (Ptot):	360 mW
Mounting:	thru-hole
Package:	TO-18
Package type :	metallic

Go to product page 2N2484

Silicon bipolar PNP RF transistor, TO-39

Order code:	2N2905A
	Silicon bipolar PNP RF transistor, TO-39 Motorola 2N2905A
Conditions:	N (The product is brand new)
Polarity:	PNP
Collector-emitter voltage (Vce max):	-60 V
Transition frequency (fT):	200 MHz
Collector current (Ic max):	-600 mA
Dissipated power (Ptot):	600 mW
Mounting:	thru-hole
Package:	TO-39
Package type :	metallic

Go to product page 2N2905A

Bipolar PNP RF transistor, TO-18

Order code:	2N2907A
	Bipolar PNP RF transistor, TO-18 Fairchild Semiconductor 2N2907A
Polarity:	PNP
Collector-emitter voltage (Vce max):	-60 V
Transition frequency (fT):	200 MHz
Collector current (Ic max):	-600 mA
Dissipated power (Ptot):	1.8 mW
Mounting:	thru-hole
Package:	TO-18
Package type :	metallic

Go to product page 2N2907A

Bipolar NPN RF transistor, TO-18

Order code:	2N3251
	Bipolar NPN RF transistor, TO-18 Motorola 2N3251
Conditions:	N (The product is brand new)
Polarity:	NPN
Collector-emitter voltage (Vce max):	40 V
Transition frequency (fT):	300 MHz
Collector current (Ic max):	200 mA
Dissipated power (Ptot):	360 mW
Mounting:	thru-hole
Package:	TO-18
Package type :	metallic

Go to product page 2N3251

Bipolar PNP RF transistor, TO-18

Order code:	2N3505
	Bipolar PNP RF transistor, TO-18 2N3505
Conditions:	N (The product is brand new)
Polarity:	PNP
Collector-emitter voltage (Vce max):	-60 V
Transition frequency (fT):	200 MHz
Collector current (Ic max):	-600 mA
Dissipated power (Ptot):	1.3 W
Mounting:	thru-hole
Package:	TO-18
Package type :	metallic

Go to product page 2N3505

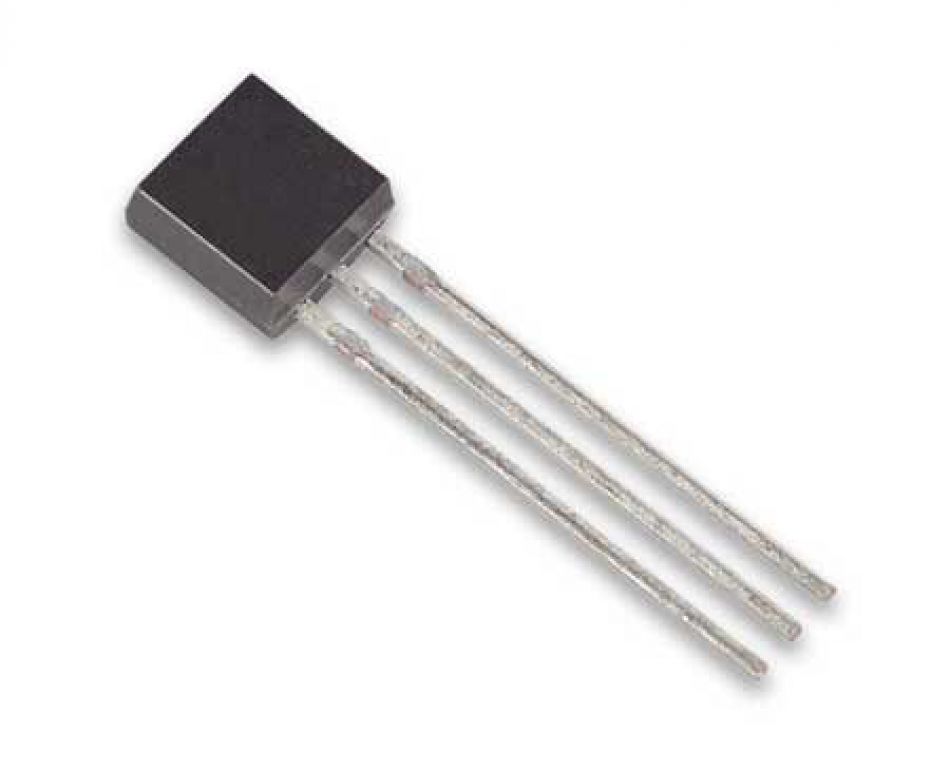

Silicon bipolar NPN RF transistor, TO-92

Order code:	2N3707
	Silicon bipolar NPN RF transistor, TO-92 Texas Instruments 2N3707
Conditions:	N- (The product is brand new but it comes from an old production)
Polarity:	NPN
Collector-emitter voltage (Vce max):	30 V
Transition frequency (fT):	100 MHz
Collector current (Ic max):	30 mA
Dissipated power (Ptot):	625 mW
Mounting:	thru-hole
Package:	TO-92
Package type :	plastic

Go to product page 2N3707

NPN RF transistor, 1 W, 400 MHz, TO-39

Order code:	2N3866
	NPN RF transistor, 1 W, 400 MHz, TO-39 Motorola 2N3866
Conditions:	N- (The product is brand new but it comes from an old production)
Polarity:	NPN
Collector-emitter voltage (Vce max):	30 V
Transition frequency (fT):	500 MHz
Collector current (Ic max):	400 mA
Dissipated power (Ptot):	5 W
Mounting:	thru-hole
Package:	TO-39
Package type :	metallic

Go to product page 2N3866

Bipolar NPN RF transistor, TO-92

Order code:	2N3904
	Bipolar NPN RF transistor, TO-92 Fairchild Semiconductor 2N3904
Conditions:	N (The product is brand new)
Polarity:	NPN
Collector-emitter voltage (Vce max):	40 V
Transition frequency (fT):	300 MHz
Collector current (Ic max):	200 mA
Dissipated power (Ptot):	625 mW
Mounting:	thru-hole
Package:	TO-92
Package type :	plastic

Go to product page 2N3904

Silicon bipolar NPN RF transistor, TO-92

Order code:	2N4401
	Silicon bipolar NPN RF transistor, TO-92 Motorola 2N4401
Polarity:	NPN
Collector-emitter voltage (Vce max):	40 V
Transition frequency (fT):	250 MHz
Collector current (Ic max):	600 mA
Dissipated power (Ptot):	625 mW
Mounting:	thru-hole
Package:	TO-92
Package type :	plastic

Go to product page 2N4401

Silicon bipolar NPN RF transistor, TO-39

Order code:	2N5109
	Silicon bipolar NPN RF transistor, TO-39 Central Semiconductor Corp. 2N5109
Conditions:	N (The product is brand new)
Polarity:	NPN
Collector-emitter voltage (Vce max):	20 V
Transition frequency (fT):	1.2 GHz
Collector current (Ic max):	400 mA
Dissipated power (Ptot):	1 W
Mounting:	thru-hole
Package:	TO-39
Package type :	metallic

Go to product page 2N5109

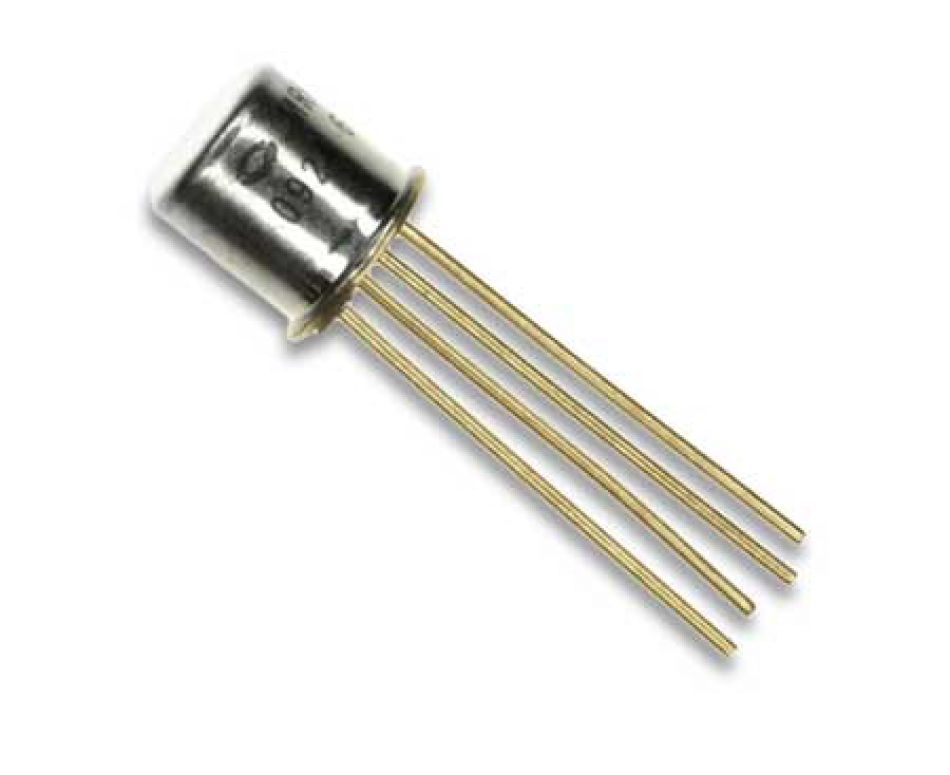

Silicon bipolar NPN RF transistor, TO-72

Order code:	2N5179
	Silicon bipolar NPN RF transistor, TO-72 SGS 2N5179
Conditions:	N (The product is brand new)
Polarity:	NPN
Collector-emitter voltage (Vce max):	12 V
Transition frequency (fT):	1.4 GHz
Collector current (Ic max):	50 mA
Dissipated power (Ptot):	300 mW
Mounting:	thru-hole
Package:	TO-72
Package type :	metallic

Go to product page 2N5179

Silicon bipolar PNP RF transistor, TO-39

Order code:	2N5415
	Silicon bipolar PNP RF transistor, TO-39 STMicroelectronics 2N5415
Polarity:	PNP
Collector-emitter voltage (Vce max):	-200 V
Transition frequency (fT):	15 MHz
Collector current (Ic max):	-1 A
Dissipated power (Ptot):	10 W
Mounting:	thru-hole
Package:	TO-39
Package type :	metallic

Go to product page 2N5415

Bipolar NPN RF transistor, TO-18

Order code:	2N914-JANTX
	Bipolar NPN RF transistor, TO-18 Motorola 2N914-JANTX
Conditions:	N- (The product is brand new but it comes from an old production)
Polarity:	NPN
Transition frequency (fT):	300 MHz
Collector current (Ic max):	150 mA
Dissipated power (Ptot):	360 mW
Mounting:	thru-hole
Package:	TO-18
Package type :	metallic

Go to product page 2N914-JANTX

Silicon bipolar NPN RF transistor, TO-72

Order code:	2N918
	Silicon bipolar NPN RF transistor, TO-72 STMicroelectronics 2N918
Conditions:	N (The product is brand new)
Polarity:	NPN
Collector-emitter voltage (Vce max):	15 V
Transition frequency (fT):	900 MHz
Collector current (Ic max):	50 mA
Dissipated power (Ptot):	300 mW
Mounting:	thru-hole
Package:	TO-72
Package type :	metallic

Go to product page 2N918

Silicon bipolar NPN RF transistor, SOT-103

Order code:	2SC1070
	Silicon bipolar NPN RF transistor, SOT-103 NEC 2SC1070
Conditions:	N (The product is brand new)
Polarity:	NPN
Collector-emitter voltage (Vce max):	25 V
Transition frequency (fT):	900 MHz
Collector current (Ic max):	20 mA
Dissipated power (Ptot):	200 mW
Mounting:	surface
Package:	SOT-103
Package type :	plastic

Go to product page 2SC1070

Silicon bipolar NPN RF transistor, TO-92

Order code:	2SC2347
	Silicon bipolar NPN RF transistor, TO-92 TOSHIBA 2SC2347
Conditions:	N (The product is brand new)
Polarity:	NPN
Collector-emitter voltage (Vce max):	15 V
Transition frequency (fT):	650 MHz
Collector current (Ic max):	50 mA
Dissipated power (Ptot):	250 mW
Mounting:	thru-hole
Package:	TO-92
Package type :	plastic

Go to product page 2SC2347

Bipolar NPN RF transistor, TO-92

Order code:	2SC2538
	Bipolar NPN RF transistor, TO-92 MITSUBISHI 2SC2538
Conditions:	N (The product is brand new)
Polarity:	NPN
Collector-emitter voltage (Vce max):	17 V
Collector current (Ic max):	400 mA
Dissipated power (Ptot):	3 W
Mounting:	thru-hole
Package:	TO-92
Package type :	plastic

Go to product page 2SC2538

Silicon bipolar NPN RF transistor, SOT-23

Order code:	2SC3356
	Silicon bipolar NPN RF transistor, SOT-23 NEC 2SC3356-T1B (R25)
Polarity:	NPN
Collector-emitter voltage (Vce max):	12 V
Transition frequency (fT):	7 GHz
Collector current (Ic max):	100 mA
Dissipated power (Ptot):	200 mW
Mounting:	surface
Package:	SOT-23
Package type :	plastic

Go to product page 2SC3356

Silicon bipolar NPN RF transistor, TO-92

Order code:	2SC536
	Silicon bipolar NPN RF transistor, TO-92 2SC536
Conditions:	N (The product is brand new)
Polarity:	NPN
Collector-emitter voltage (Vce max):	30 V
Transition frequency (fT):	100 MHz
Collector current (Ic max):	100 mA
Dissipated power (Ptot):	400 mW
Mounting:	thru-hole
Package:	TO-92
Package type :	plastic

Go to product page 2SC536

Silicon bipolar NPN RF transistor, TO-72

Order code:	2SC787
	Silicon bipolar NPN RF transistor, TO-72 TOSHIBA 2SC787
Polarity:	NPN
Collector-emitter voltage (Vce max):	20 V
Transition frequency (fT):	1 GHz
Collector current (Ic max):	20 mA
Dissipated power (Ptot):	150 mW
Mounting:	thru-hole
Package:	TO-72
Package type :	metallic

Go to product page 2SC787

Germanium bipolar PNP RF transistor, TO-72

Order code:	AF106
	Germanium bipolar PNP RF transistor, TO-72 Telefunken AF106
Conditions:	N (The product is brand new)
Polarity:	PNP
Collector-emitter voltage (Vce max):	-18 V
Transition frequency (fT):	220 MHz
Collector current (Ic max):	-10 mA
Dissipated power (Ptot):	60 mW
Mounting:	thru-hole
Package:	TO-72
Package type :	metallic

Go to product page AF106

Germanium bipolar PNP RF transistor, TO-72

Order code:	AF139
	Germanium bipolar PNP RF transistor, TO-72 Siemens AF139
Conditions:	N (The product is brand new)
Polarity:	PNP
Collector-emitter voltage (Vce max):	-15 V
Transition frequency (fT):	550 MHz
Collector current (Ic max):	-10 mA
Dissipated power (Ptot):	60 mW
Mounting:	thru-hole
Package:	TO-72
Package type :	metallic

Go to product page AF139

Germanium bipolar PNP RF transistor, TO-72

Order code:	AF239
	Germanium bipolar PNP RF transistor, TO-72 SGS-ATES AF239
Conditions:	N (The product is brand new)
Polarity:	PNP
Collector-emitter voltage (Vce max):	-15 V
Transition frequency (fT):	700 MHz
Collector current (Ic max):	-10 mA
Dissipated power (Ptot):	60 mW
Mounting:	thru-hole
Package:	TO-72
Package type :	metallic

Go to product page AF239

Germanium bipolar PNP RF transistor, SOT-37

Order code:	AF379
	Germanium bipolar PNP RF transistor, SOT-37 AF379
Conditions:	N (The product is brand new)
Polarity:	PNP
Collector-emitter voltage (Vce max):	-13 V
Transition frequency (fT):	1.25 GHz
Collector current (Ic max):	-20 mA
Dissipated power (Ptot):	100 mW
Mounting:	surface
Package:	SOT-37
Package type :	plastic

Go to product page AF379

Germanium bipolar NPN RF transistor, TO-5

Order code:	ASY29
	Germanium bipolar NPN RF transistor, TO-5 Philips ASY29
Conditions:	N (The product is brand new)
Polarity:	NPN
Collector-emitter voltage (Vce max):	15 V
Transition frequency (fT):	20 MHz
Collector current (Ic max):	200 mA
Dissipated power (Ptot):	150 mW
Mounting:	thru-hole
Package:	TO-5
Package type :	metallic

Go to product page ASY29

Silicon bipolar NPN RF transistor, SOT-143

Order code:	AT-00511
	Silicon bipolar NPN RF transistor, SOT-143 Hewlett-Packard AT-00511-tr1
Conditions:	N- (The product is brand new but it comes from an old production)
Polarity:	NPN
Collector-emitter voltage (Vce max):	12 V
Transition frequency (fT):	7 GHz
Collector current (Ic max):	50 mA
Dissipated power (Ptot):	230 mW
Mounting:	surface
Package:	SOT-143
Package type :	plastic

Go to product page AT-00511

Silicon bipolar NPN RF transistor, SOT-143

Order code:	AT-32011
	Silicon bipolar NPN RF transistor, SOT-143 Hewlett-Packard AT-32011
Conditions:	N (The product is brand new)
Polarity:	NPN
Collector-emitter voltage (Vce max):	5.5 V
Transition frequency (fT):	10 GHz
Collector current (Ic max):	32 mA
Dissipated power (Ptot):	200 mW
Mounting:	surface
Package:	SOT-143
Package type :	plastic

Go to product page AT-32011

Silicon bipolar NPN RF transistor, 86 plastic package

Order code:	AT-41486
	Silicon bipolar NPN RF transistor, 86 plastic package Agilent Technologies AT-41486
Conditions:	N (The product is brand new)
Polarity:	NPN
Collector-emitter voltage (Vce max):	12 V
Transition frequency (fT):	8 GHz
Collector current (Ic max):	60 mA
Dissipated power (Ptot):	500 mW
Mounting:	surface
Package:	86
Package type :	plastic

Go to product page AT-41486

Bipolar NPN RF transistor, 86 plastic package

Order code:	AT-41586
	Bipolar NPN RF transistor, 86 plastic package Hewlett-Packard AT-41586
Conditions:	N (The product is brand new)
Polarity:	NPN
Collector-emitter voltage (Vce max):	12 V
Transition frequency (fT):	8 GHz
Collector current (Ic max):	60 mA
Dissipated power (Ptot):	500 mW
Mounting:	surface
Package:	86
Package type :	plastic

Go to product page AT-41586

Silicon bipolar NPN RF transistor, 70 mil package

Order code:	AT-60570
	Silicon bipolar NPN RF transistor, 70 mil package Avantek AT-60570
Polarity:	NPN
Collector-emitter voltage (Vce max):	12 V
Transition frequency (fT):	8 GHz
Collector current (Ic max):	40 mA
Dissipated power (Ptot):	400 mW
Mounting:	surface
Package:	70 mil
Package type :	ceramic

Go to product page AT-60570

Silicon bipolar PNP RF transistor, TO-92

Order code:	BC253B
	Silicon bipolar PNP RF transistor, TO-92 ITT Semiconductors BC253B
Conditions:	N (The product is brand new)
Polarity:	PNP
Collector-emitter voltage (Vce max):	-25 V
Transition frequency (fT):	150 MHz
Collector current (Ic max):	-100 mA
Dissipated power (Ptot):	300 mW
Mounting:	thru-hole
Package:	TO-92
Package type :	plastic

Go to product page BC253B

Silicon bipolar NPN transistor, SOT-323

Order code:	BC847BW
	Silicon bipolar NPN transistor, SOT-323 Infineon BC847BW
Conditions:	N (The product is brand new)
Polarity:	NPN
Collector-emitter voltage (Vce max):	45 V
Transition frequency (fT):	250 MHz
Collector current (Ic max):	100 mA
Dissipated power (Ptot):	250 mW
Mounting:	surface
Package:	SOT-323
Package type :	plastic

Go to product page BC847BW

Bipolar PNP transistor, SOT-23

Order code:	BC856
	Bipolar PNP transistor, SOT-23 NXP Semiconductors BC856
Conditions:	N (The product is brand new)
Polarity:	PNP
Collector-emitter voltage (Vce max):	-65 V
Transition frequency (fT):	100 MHz
Collector current (Ic max):	-100 mA
Dissipated power (Ptot):	250 mW
Mounting:	surface
Package:	SOT-23
Package type :	plastic

Go to product page BC856

Bipolar PNP transistor, SOT-23

Order code:	BC857B
	Bipolar PNP transistor, SOT-23 Samsung BC857B
Conditions:	N (The product is brand new)
Polarity:	PNP
Collector-emitter voltage (Vce max):	-45 V
Transition frequency (fT):	100 MHz
Collector current (Ic max):	-100 mA
Dissipated power (Ptot):	250 mW
Mounting:	surface
Package:	SOT-23
Package type :	plastic

Go to product page BC857B

Bipolar PNP transistor, SOT-89

Order code:	BCX51
	Bipolar PNP transistor, SOT-89 Philips BCX51
Conditions:	N (The product is brand new)
Polarity:	PNP
Collector-emitter voltage (Vce max):	-45 V
Transition frequency (fT):	50 MHz
Collector current (Ic max):	-1 A
Dissipated power (Ptot):	1.3 W
Mounting:	surface
Package:	SOT-89
Package type :	plastic

Go to product page BCX51

Bipolar PNP transistor, SOT-89

Order code:	BCX53-16
	Bipolar PNP transistor, SOT-89 Philips BCX53-16
Conditions:	N (The product is brand new)
Polarity:	PNP
Collector-emitter voltage (Vce max):	-80 V
Transition frequency (fT):	50 MHz
Collector current (Ic max):	-1 A
Dissipated power (Ptot):	1.3 W
Mounting:	surface
Package:	SOT-89
Package type :	plastic

Go to product page BCX53-16

Bipolar NPN transistor, SOT-89

Order code:	BCX54-16
	Bipolar NPN transistor, SOT-89 Philips BCX54-16
Conditions:	N (The product is brand new)
Polarity:	NPN
Collector-emitter voltage (Vce max):	45 V
Transition frequency (fT):	130 MHz
Collector current (Ic max):	1 A
Dissipated power (Ptot):	1.3 W
Mounting:	surface
Package:	SOT-89
Package type :	plastic

Go to product page BCX54-16

Silicon bipolar NPN transistor, SOT-23

Order code:	BCX70G
	Silicon bipolar NPN transistor, SOT-23 Infineon BCX70G
Conditions:	N (The product is brand new)
Polarity:	NPN
Collector-emitter voltage (Vce max):	45 V
Transition frequency (fT):	50 MHz
Collector current (Ic max):	100 mA
Dissipated power (Ptot):	330 mW
Mounting:	surface
Package:	SOT-23
Package type :	plastic

Go to product page BCX70G

Silicon bipolar NPN RF transistor, TO-72

Order code:	BF155
	Silicon bipolar NPN RF transistor, TO-72 SGS-Thomson BF155
Polarity:	NPN
Collector-emitter voltage (Vce max):	40 V
Transition frequency (fT):	800 MHz
Collector current (Ic max):	20 mA
Dissipated power (Ptot):	200 mW
Mounting:	thru-hole
Package:	TO-72
Package type :	metallic

Go to product page BF155

Silicon bipolar NPN RF transistor, TO-72

Order code:	BF161
	Silicon bipolar NPN RF transistor, TO-72 SGS-Thomson BF161
Conditions:	N (The product is brand new)
Polarity:	NPN
Collector-emitter voltage (Vce max):	50 V
Transition frequency (fT):	550 MHz
Collector current (Ic max):	20 mA
Dissipated power (Ptot):	260 mW
Mounting:	thru-hole
Package:	TO-72
Package type :	metallic

Go to product page BF161

Silicon bipolar NPN RF transistor, TO-72

Order code:	BF173
	Silicon bipolar NPN RF transistor, TO-72 SGS BF173
Polarity:	NPN
Collector-emitter voltage (Vce max):	25 V
Transition frequency (fT):	1 GHz
Collector current (Ic max):	25 mA
Dissipated power (Ptot):	175 mW
Mounting:	thru-hole
Package:	TO-72
Package type :	metallic

Go to product page BF173

Silicon bipolar NPN RF transistor, TO-72

Order code:	BF185
	Silicon bipolar NPN RF transistor, TO-72 Telefunken BF185
Conditions:	N (The product is brand new)
Polarity:	NPN
Collector-emitter voltage (Vce max):	20 V
Transition frequency (fT):	200 MHz
Collector current (Ic max):	30 mA
Dissipated power (Ptot):	145 mW
Mounting:	thru-hole
Package:	TO-72
Package type :	metallic

Go to product page BF185

Silicon bipolar NPN RF transistor, TO-92

Order code:	BF199F
	Silicon bipolar NPN RF transistor, TO-92 Fairchild Semiconductor BF199
Polarity:	NPN
Collector-emitter voltage (Vce max):	25 V
Transition frequency (fT):	1100 MHz
Collector current (Ic max):	50 mA
Dissipated power (Ptot):	350 mW
Mounting:	thru-hole
Package:	TO-92
Package type :	plastic

Go to product page BF199F

Silicon bipolar NPN RF transistor, TO-92

Order code:	BF255
	Silicon bipolar NPN RF transistor, TO-92 Thomson-CSF BF255
Conditions:	N (The product is brand new)
Polarity:	NPN
Collector-emitter voltage (Vce max):	30 V
Transition frequency (fT):	250 MHz
Collector current (Ic max):	300 mA
Dissipated power (Ptot):	30 mW
Mounting:	thru-hole
Package:	TO-92
Package type :	plastic

Go to product page BF255
